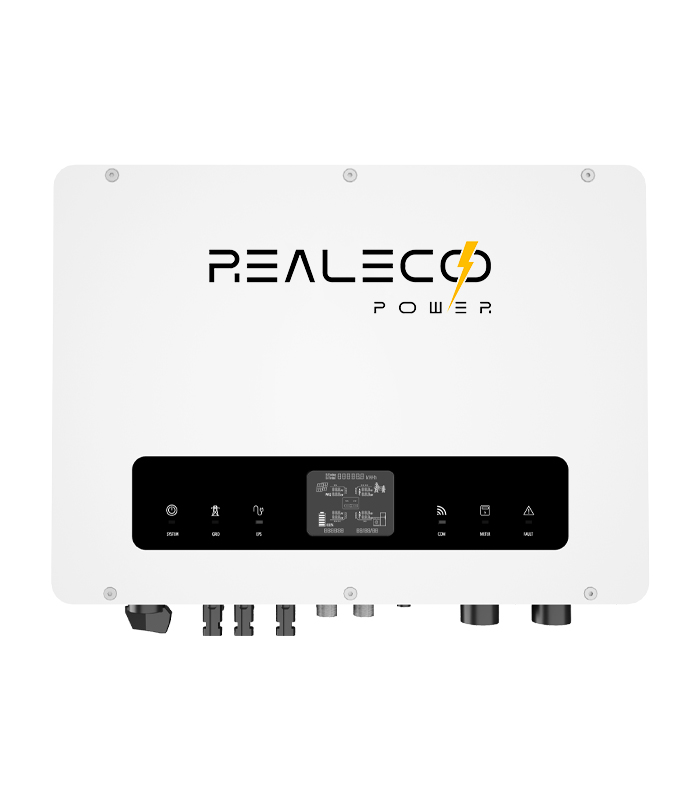

RealEco High Voltage(HONOR) Three Phase Hybrid Inverter

Category: Brand:

Key Features:

Three Phase Hybrid Inverter
4.0KW/5.OKW/6.OKW/8.OKW/10.OKW/12.OKW

 320,000

Out of stock

Out of stock

Description

Model No HONOR4K HONOR5K HONOR6K HONOR8K HONOR10K HONOR12
Input ( DC )
Max DC power 6000W 7500W 9000W 12000W 15000W 15000W
Max DC voltage 1000V d.c.
MPPT voltage range 200…850V d.c.
Max input current/per string 13Ax2
Number of MPP trackers 2
Number of input string 2
Battery Input
Battery Type Li-Ion
Battery voltage range 130-700V
Maximum charge/discharge current 25/25A
Charge strategy for Li-ion Battery Self-adaptation to BMS
Output (AC)
AC nominal power 4000VA 5000VA 6000VA 8000VA 10000VA 12000VA
Max AC apparent power 5000VA 5500VA 7000VA 8800VA 11000VA 13200VA
Max output current 8A 10A 12A 15A 17A 20A
Nominal AC output 50/60Hz; 400/350
AC output range 45/55Hz;280~490Vac(Adj)
Power factor 0.8leading…0.8lagging
Harmonics factor <3%
Grid type 3W/N/PE
Three-phase unbalance output 0~100% 0~100% 0~100% 0~100% 0~100% 0~80%
AC Output ( Back-up )
Max AC apparent power 4000VA 5000VA 6000VA 8000VA 10000VA 10000VA
Nominal Output Voltage 400/380V
Nominal Output Frequency 50/60HZ
Output THDV (@Linear Load) <3%
Efficiency
Maximum conversion efficiency 98.00% 98.00% 98.20% 98.20% 98.20% 98.20%
European efficiency 97.30% 97.30% 97.50% 97.50% 97.50% 97.50%
Max battery to AC Efficiency 97.20% 97.20% 97.40% 97.40% 97.40% 97.40%
MPPT efficiency 99.90% 99.90% 99.90% 99.90% 99.90% 99.90%
Safety and Protection
DC reverse-polarity protection yes
DC breaker yes
DC/AC SPD yes
Leakage current protection yes
Insulation Impedance Detection yes
Residual Current protection yes
Output short circuit protection yes
Battery reverse connection protection yes
General Parameters
Dimension (W/H/D) 548*444*184mm
Weight 27 kg
Operating temperature range °C -25°C…+60°C
Degree of protection IP65
Cooling concept Natural convection
Topology Transformersless
Display LCD
Humidity 0-95%,no condensation
Communication Standard WiFi/GPRS/LAN(optional)
Warranty Standard 5 years; 7/10 years optional
BMS communication CAN/RS485
Meter communication RS485
Certificates and Approvals
CQC, VDE-AR-N4105,IEC61727, IEC62116, VDE0124-AR-N0124, EN50549, IEC62109, IEC62477
