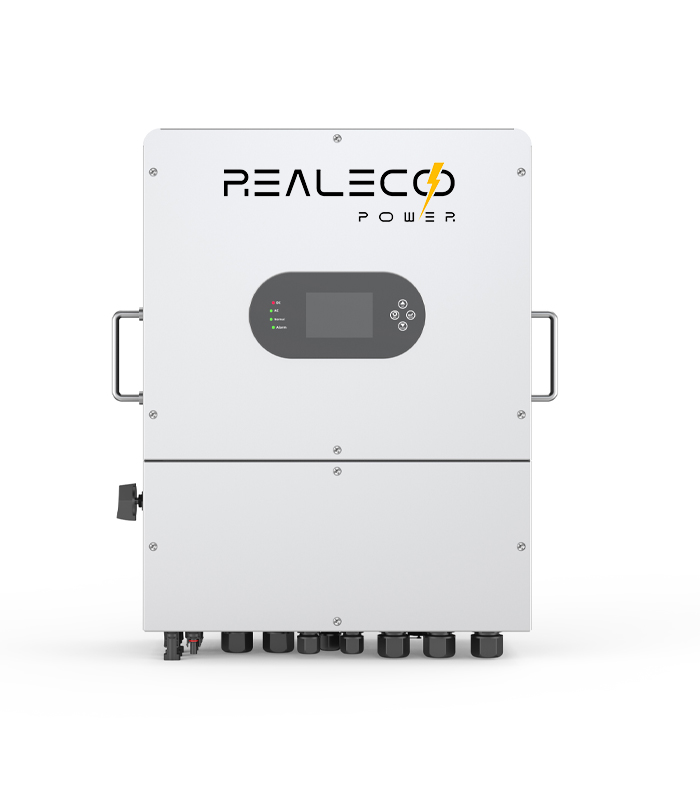

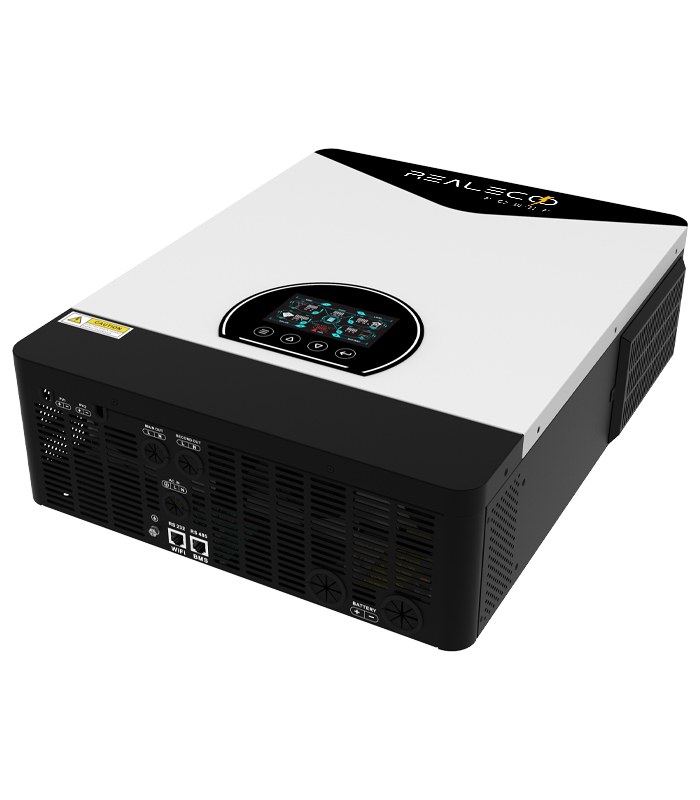

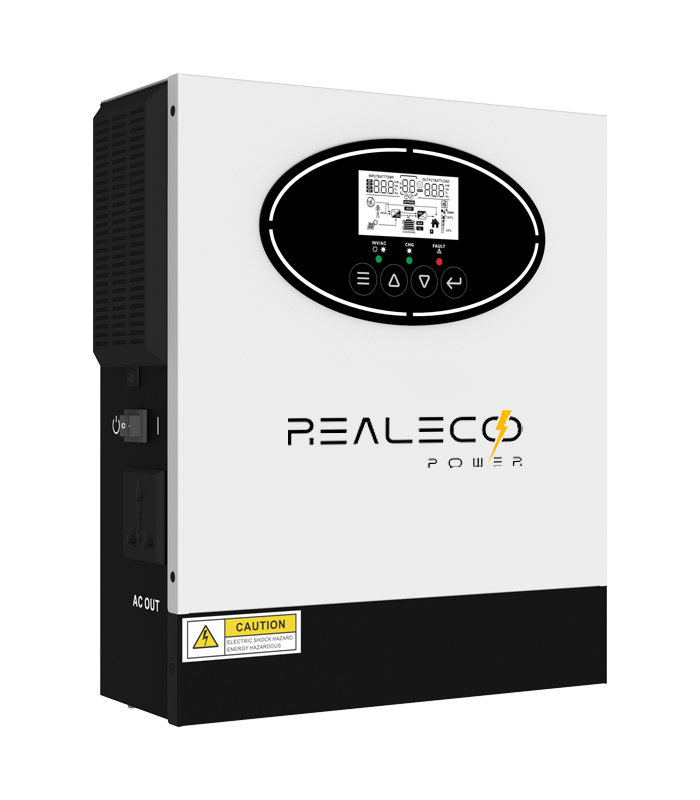

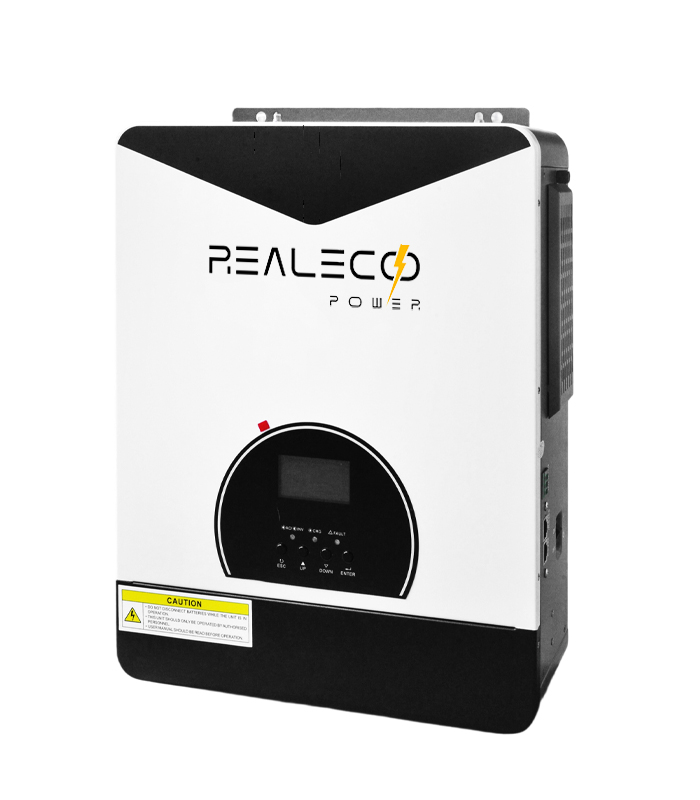

RealEco AX 8.2KW Smart Hybrid Solar Inverter

Category: Brand:

Key Features:

  • Pure sine wave solar inverter(on/off Grid)
  • Output power factor 1.0
  • WIFI&GPRS available for IOS and Android
  • Inverter can run without battery
  • One-key restoration to factory Settings
  • Built-in Lithium battery automatic activation
  • Built-in 160A MPPT solar charger (for 8.2kw,10.2kw),140A(for 7.2kw)
  • High PV input voltage range(90-500VDC)
  • Built-in anti-dust kit for harsh environment
  • Smart battery charge design to optimize battery life
  • Dual output

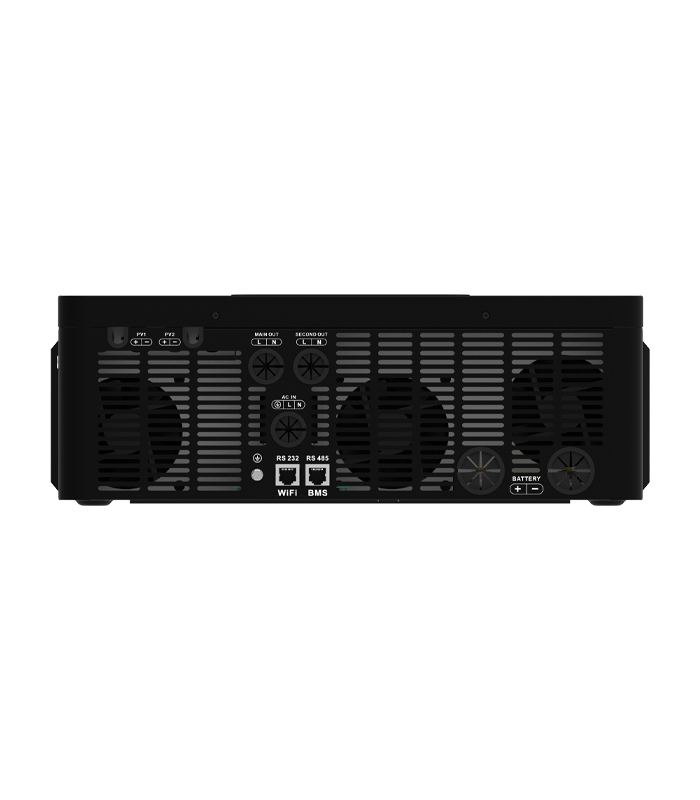

  • Dual PV input
  • Touch button
  • On Off Grid Work Mode
  • Communication with lithium battery

 275,000

Out of stock

Out of stock

Description

MODEL AX-8.2KW
Phase 1-Phase
Maximum PV Input Power 8200W/5400W+5400W
Rated Output power 8200W/8200VA
Maximum Sol ar Charging Cu rrent 160A
GRID-TIE OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage J Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90-450VDC
Maximum Input Current 2/18A
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 190-253VDC
Nominal Output Current 35.6A
Power Factor >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC) 98%
TWO LOAD OUTPUT POWER
Full Load 8200W
Maxium Main Load 8200W
Maxium Second Load(battery mode) 2733W
Maxium Load Cut Off Voltage 52VDC
Maxium Load Return Voltage 54VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage / Auto Restart Voltage 120-140VAC/180VAC
Acceptab le Input Voltage Range 90-280VAC or 170-280VAC
Frequency Range 49-51±1 Hz or 59-61±1 Hz
Maximum AC Input Current 40A
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
MPPT voltage Range 90-450VDC
Maximum Input Current 2/18A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Waveform Pure sine wave
Efficiency (DC to AC) 94%
BATTERY & CHARGER
Nominal DC Voltage 48VDC
Maximum Solar Charging Current 160A
Maximum AC Charging Current 140A
Maximum Charging Current 160A
HYB RID OPERATION
PV INPUT (DC)
Nominal DC Voltage/Maximum DC Voltage 360/500VDC
Start-up Voltage / Initial Feeding Voltage 90VDC/120VDC
MPPT Voltage Range 90-450VDC
Maximum Input Current 2/18A
GRID OUTPUT (AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 190-253VDC
Nominal Output Current 35.6A
AC INPUT
AC Start-up Voltage I Auto Restart Voltage 120-140VAC/180VAC
Acceptable Input Voltage Range 90-280VACor170-180VAC
Maximum AC Input Current 40A
Maximum AC Charging Current 140A
