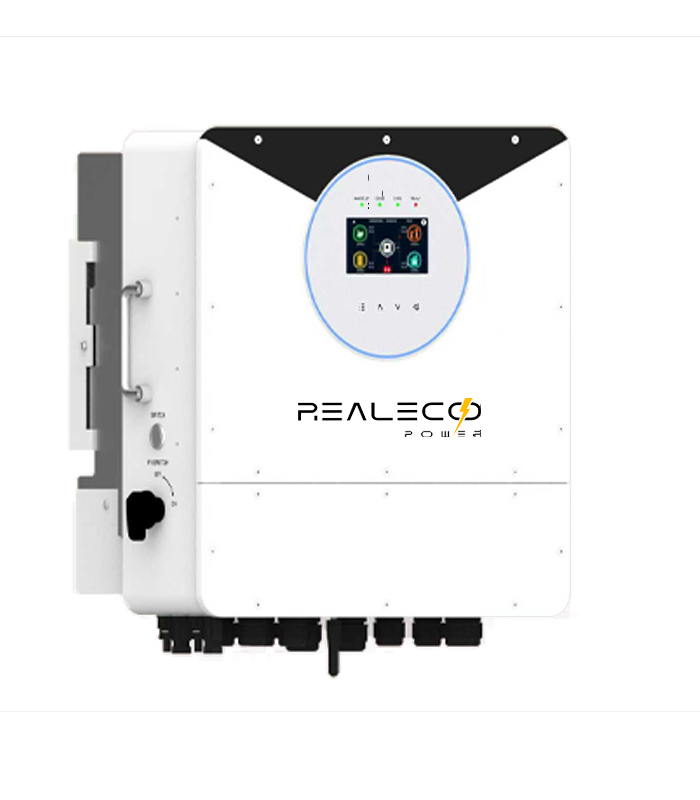

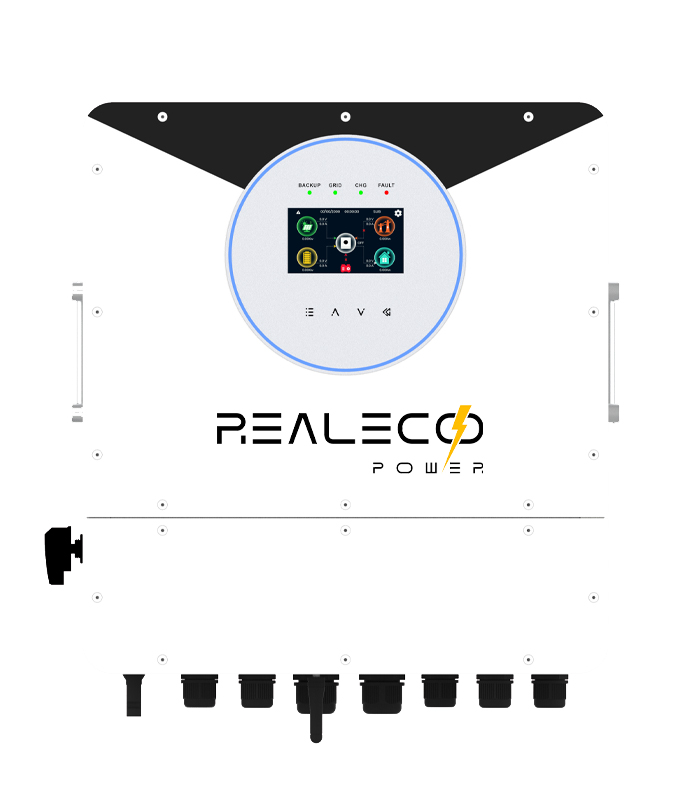

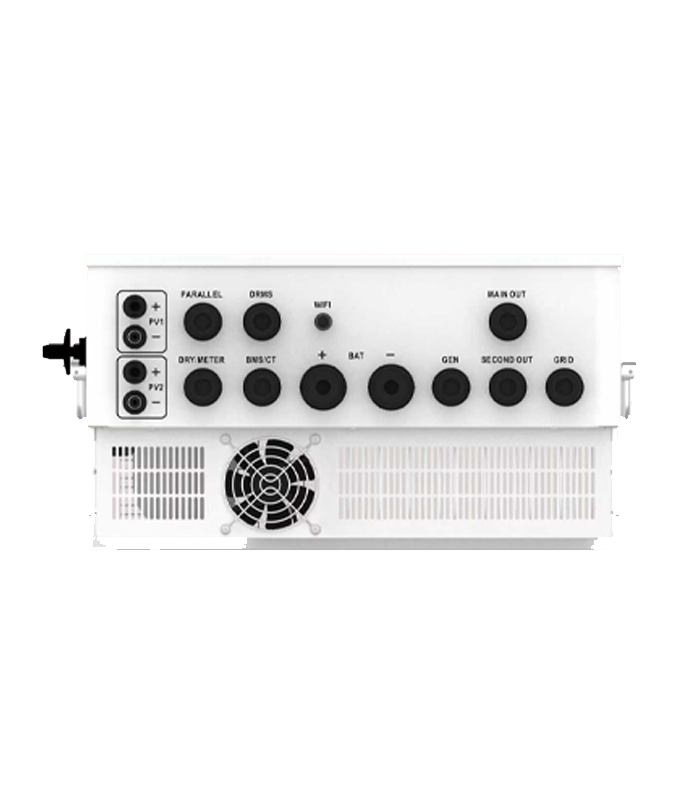

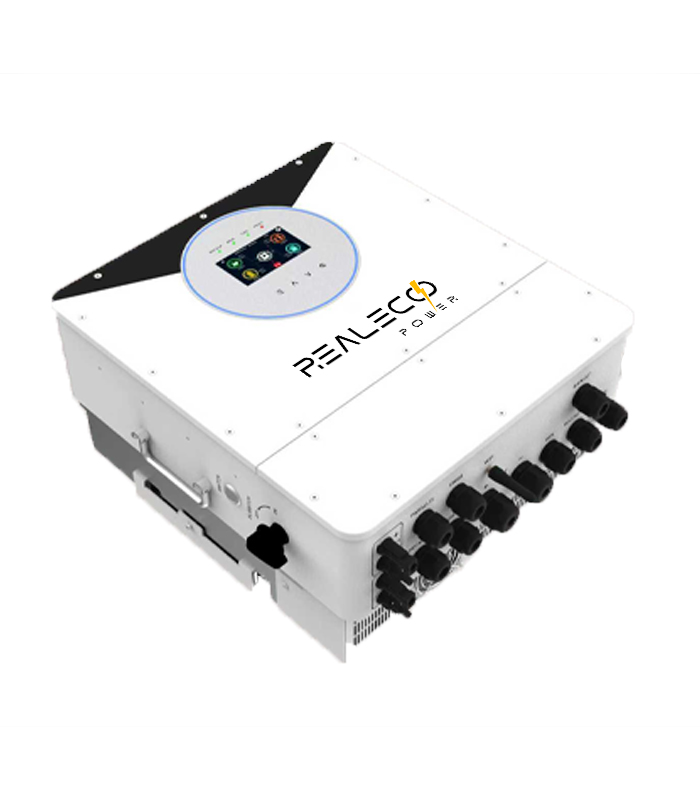

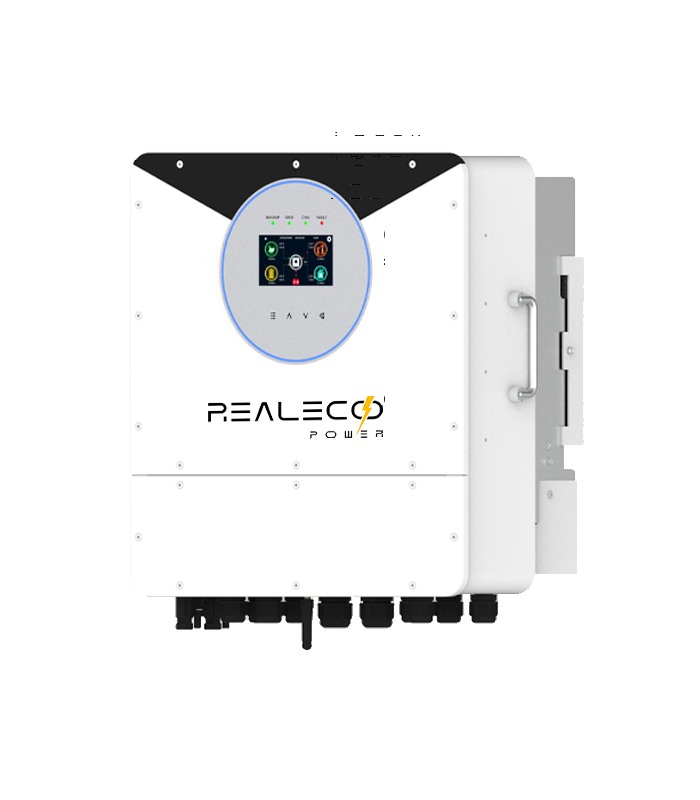

RealEco SINGLE PHASE HYBRID INVERTER

Category: Brand:

Key Features:

Hyson 6K-8K-10K-12K

 320,000

Out of stock

Out of stock

Description

Model Hyson 6K Hyson 8K Hyson 10K Hyson 12K
PV String Input Data
Max. DC Input Power (W) 7800 10400 13000 15600
Rated PV Input Voltage (V) 370 (125~500)
Start-up Voltage (V) 125
MPPT Voltage Range (V) 150-425
Full Load MPPT Voltage Range (V) 200-425
Max. DC Input Current(A) 13+13 20+20 26+26+26 26+26+26
Max. PV Isc(A) 22+22 44+44 44+44+44 44+44+44
No.of MPPT Trackers 2 2 3 3
No.of Strings per MPPT Tracker 1+1 1+1 1+1+1 1+1+1
ACInput/Output Data
Rated AC Output Power (W) 6000 8000 10000 12000
Max AC Output Power (W) 6600 8800 11000 13200
AC Input/Output Rated Current(A) 27.3/26.1 36.4/34.8 45.5/43.5 54.6/52.2
Max.AC Input/Output Current(A) 30/28.7 40/38.3 50/47.9 60/57.4
Max.Continuous AC Passthrough (A) 40 50 60 60
Peak Power (off grid) 2 times of rated power, 10 S
Power Factor 0.8 leading – 0.8 lagging
AC Output Frequency and Voltage 50/60Hz; 220/230Vac
Grid Type Single Phase
Total Harmonic Distortion (THDi) <3% (of nominal power)
DC Current Injection <0.5% (Rated Current)
Battery Input Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range (V) 40-60
Max. Charging Current (A) 135 190 220 250
Max. Discharging Current (A) 135 190 220 250
External Temperature Sensor Yes
Charging Curve 3 Stages / Equalization
Charging Strategy for Li-Ion Battery Self-adaption to BMS
Efficiency
Max. Efficiency 97.60%
Euro Efficiency 96.50%
MPPT Efficiency 99%
Protection
Anti-islanding Protection Integrated
PV String Input Reverse Polarity Protection Integrated
Insulation Resistor Detection Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection Integrated
Output Shorted Protection Integrated
Surge Protection DC Type II/AC Type II
Over Voltage Category DC Type II / AC Type III
PV Arc Fault Detection Integrated
PV Input Lightning Protection Integrated
Certifications and Standards
Grid Regulation IEC61727/IEC 62116,EN 50549-1
Safety EMC / Standard IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range (°C) -40~60°C, >45°C Derating
Cooling Smart Cooling
Noise (dB) ≤50 dB
Communication with BMS RS485; CAN
Monitoring mode WIFI, APP
Weight (kg) 24 29 31
Size (W x H x D mm) 340x405x215D (Excluding connectors and brackets) 420x452x255D (ding connectors and brackets) 440x46576Hx254D (Excluding connectors and brackets)
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 Years (10Years Optional)
