| MODEL | TOUCH4K | TOUCH6.2K | TOUCH11K | TOUCH6.2K(B) | TOUCH11K(B) |
| PV CHARGER | |||||
| PV charging method | MPPT | MPPT | Dual MPPT | MPPT | Dual MPPT |
| Maximum input power of PV | 6500W | 8500W | 2×7500W | 8500W | 2×7500W |
| MPPT input voltage range | 60-500Vdc | 60-500Vdc | 90-500Vdc | 60-500Vdc | 90-500Vdc |
| optimal Vmp operating range | 300-400Vdc | 300-400Vdc | 300-400Vdc | 300-400Vdc | 300-400Vdc |
| maximum PV input voltage | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc |
| maximum PV input current | 18A | 27A | 18A/18A | 27A | 18A/18A |
| maximum PV charging current | 120A | 120A | 150A | 120A | 150A |
| maximum mains charging current | 100A | 100A | 150A | 100A | 150A |
| maximum charging current | 120A | 120A | 150A | 120A | 150A |
| Rated input voltage | 220/230/240VAC | ||||
| Voltage range | 90-280VAC±3V(normal mode) 170-280VAC±3V(UPS mode) | ||||
| Frequency range | 50Hz/60Hz(Adaptive) | ||||
| OUTPUT | |||||
| Battery | 4000W | 6200W | 11000W | 6200W | 11000W |
| Photovoltaic | 4500W | 6500W | 11000W | 6500W | 11000W |
| Peak Power | 7200VA | 12400VA | 22000VA | 12400VA | 22000VA |
| Output voltage | 220/230/240VAC±5% | ||||
| Output frequency | 50/60Hz±0.1% | ||||
| Waveform | pure Sine Wave | ||||
| Switching time (adjustable) | Computer equipment 10ms, home appliances 20ms | ||||
| Overload capacity | Battery Mode :11s@105%~150% Load;2s@150%~200% Load;400ms@>200% Load | ||||
| Grid feeding operation | |||||
| Output voltage | 220/230/240VAC | ||||
| grid feeding voltage range | 195-253VA | ||||
| grid feeding frequency range | 49-51±1Hz/59-61±1Hz | ||||
| nominal output current | 15.7A | 26.9A | 47.8A | 26.9A | 47.8A |
| power factor range | >0.99 | ||||
| maximum conversion efficiency (DC/AC) | 98% | ||||
| BATTERY | |||||
| Rated voltage | 24Vdc | 48Vdc | 48Vdc | 48Vdc | 48Vdc |
| constant voltage charging voltage (configurable) | 28.2Vdc | 56.4Vdc | 56.4Vdc | 56.4Vdc | 56.4Vdc |
| float charging voltage (configurable) | 27Vdc | 54Vdc | 54Vdc | 54Vdc | 54Vdc |
| DISPLAY | |||||
| LCD Interface | Can display operation mode/load/input/output, etc. | ||||
| INTERFACE | |||||
| RS232 | Baud rate 2400 | ||||
| Expansion slot communication interface | Lithium battery BMS communication card, WIFI card, dry contact car d, etc. | ||||
| Parallel interface | No parallel function | Optional | Parallel (network) function | ||
| ENVIRONMENTAL PARAMETERS | |||||
| Operating ambient temperature | -10°C~+50°C | ||||
| Operating environment humidity | 20%~95%(No condensation) | ||||
| Storage temperature | -15°C~+60°C | ||||
| noise | =50db | ||||
| PHYSICAL PARAMETERS | |||||
| Depth × width × height (mm) | 483*313*143 mm | 570*500*148mm | 483*313*143 mm | 570*500*148mm | |
| Standards and certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | ||||

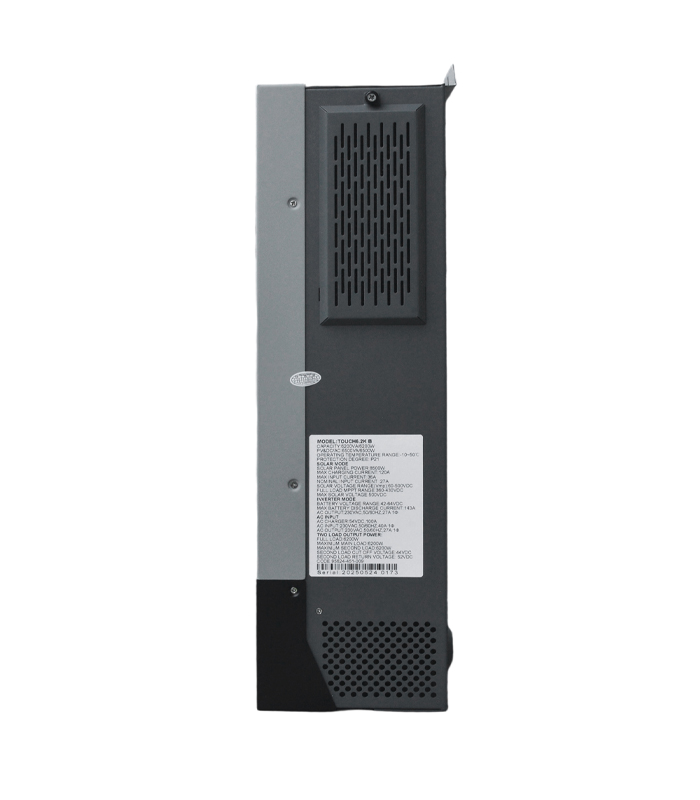

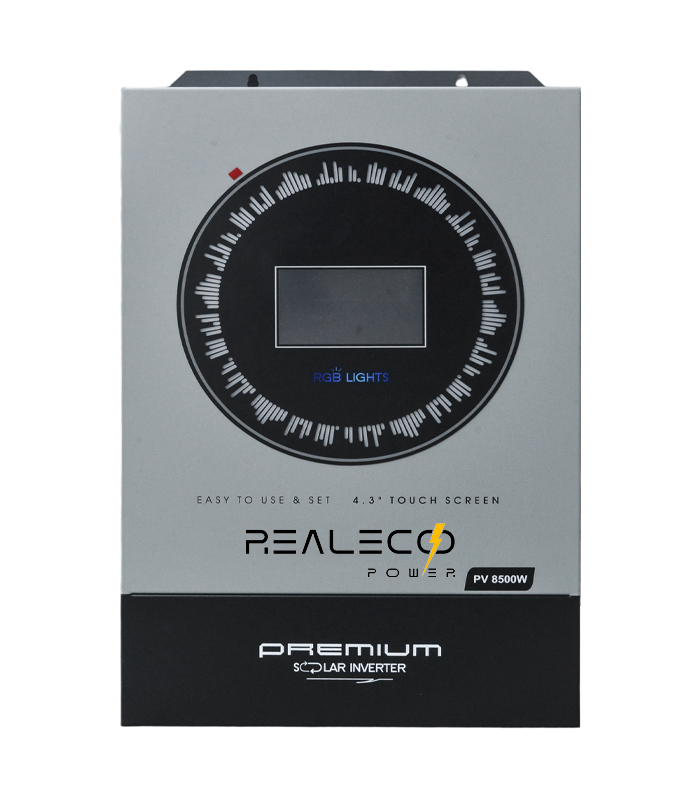

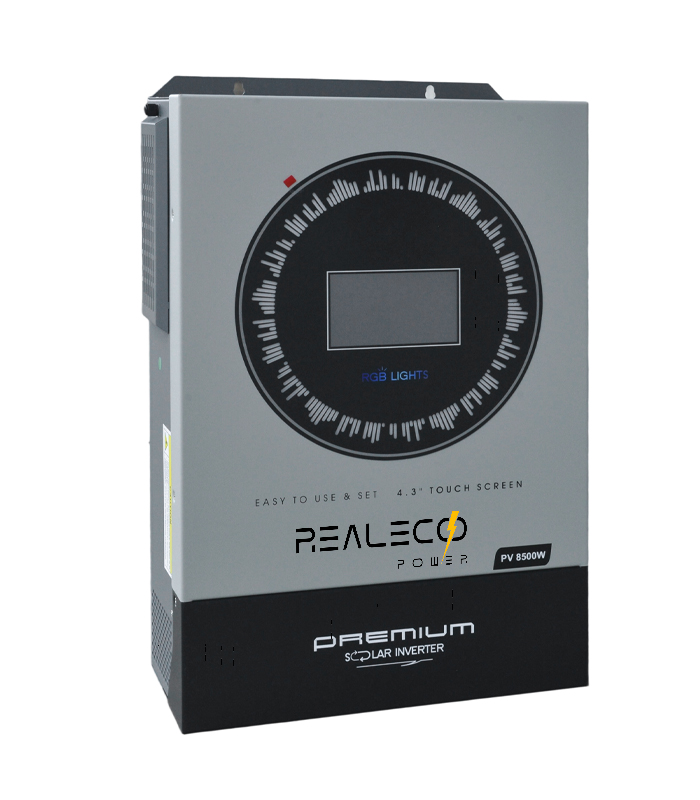

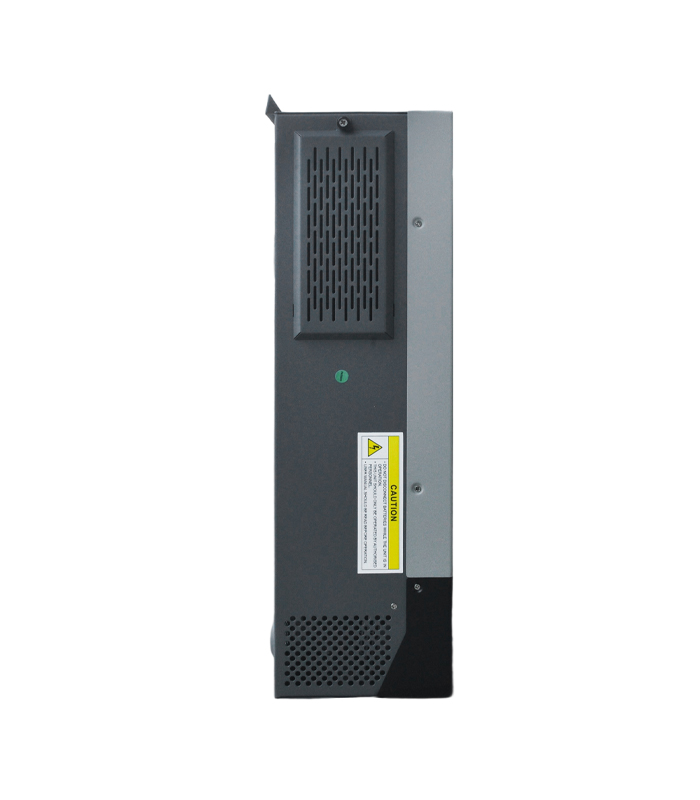

RealEco Touch screen + RGB + High PV Smart Hybrid Solar Inverter
Category: Hybrid Inverters
Brand: Real Eco
Key Features:
- High PV input power, working without battery
- Touch screen color display,intuitive parameter display
- Enhanced inverter output power under PV mode
- Double AC output for smart load management and power saving
- Novel and fashionable RGB atmosphere lights indicator
- Higher photovoltaic utilization under PV and grid power complements
- EMI filtering and strong anti-interference technology
- Parallel up to 9 pieces
₨ 240,000
Out of stock
Out of stock
